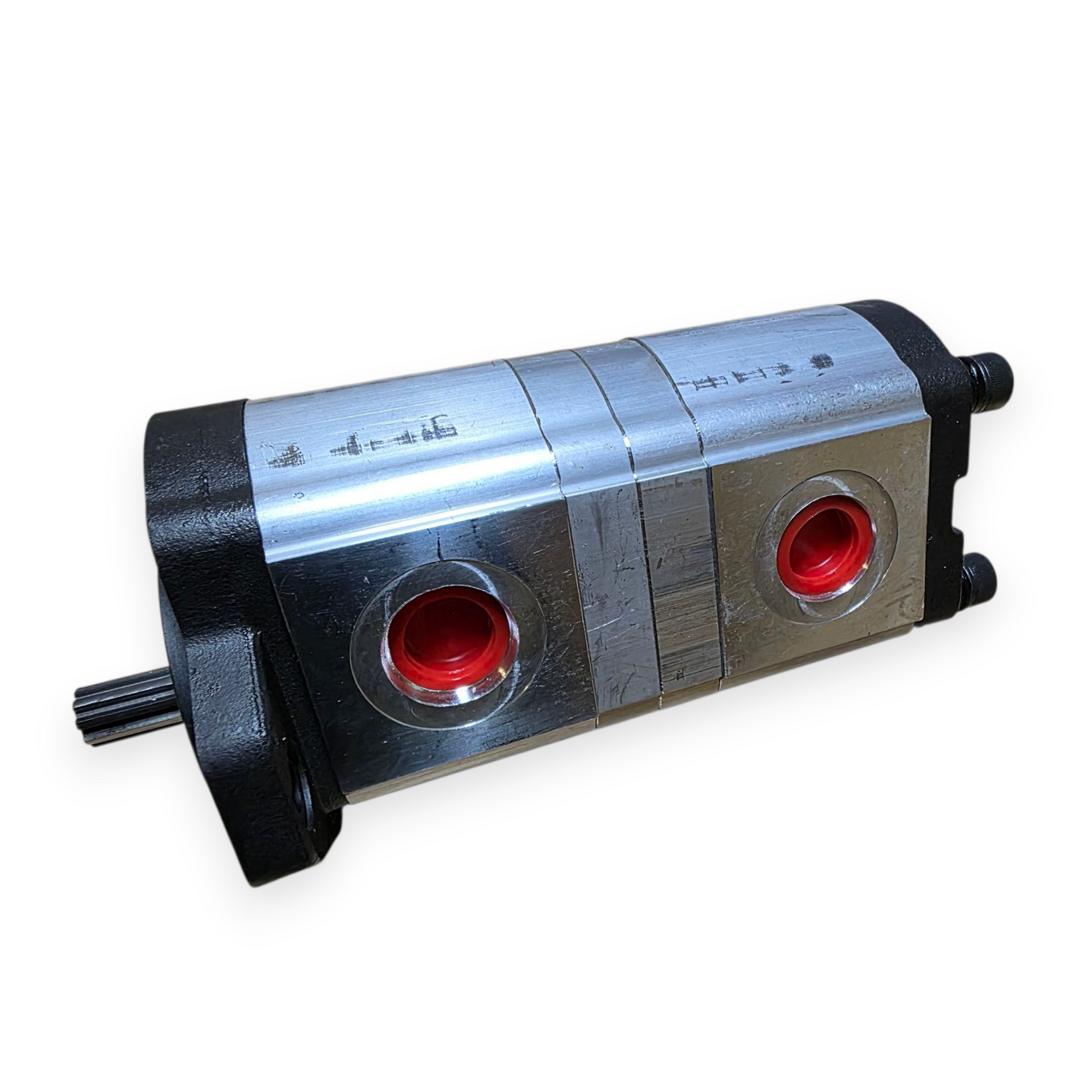

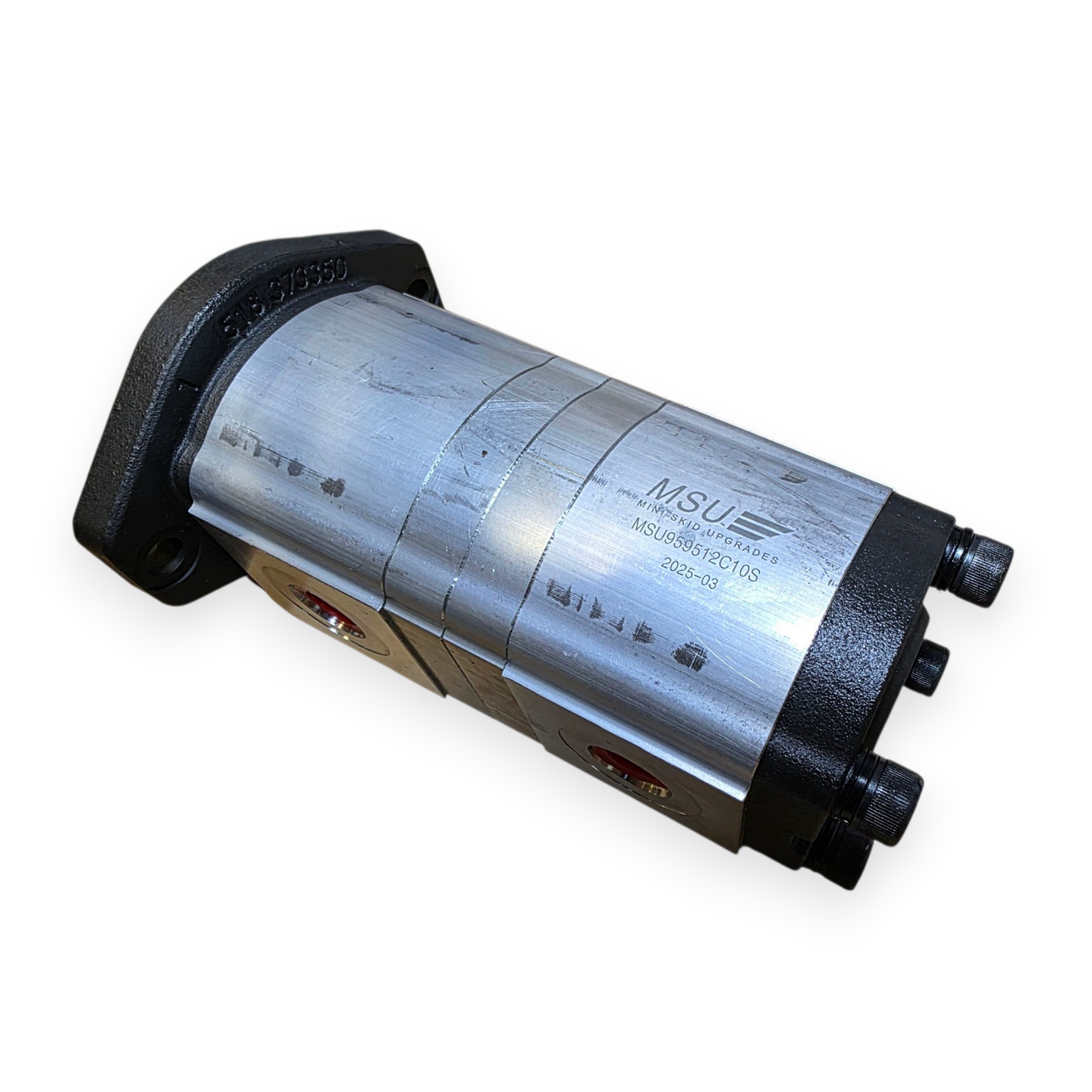

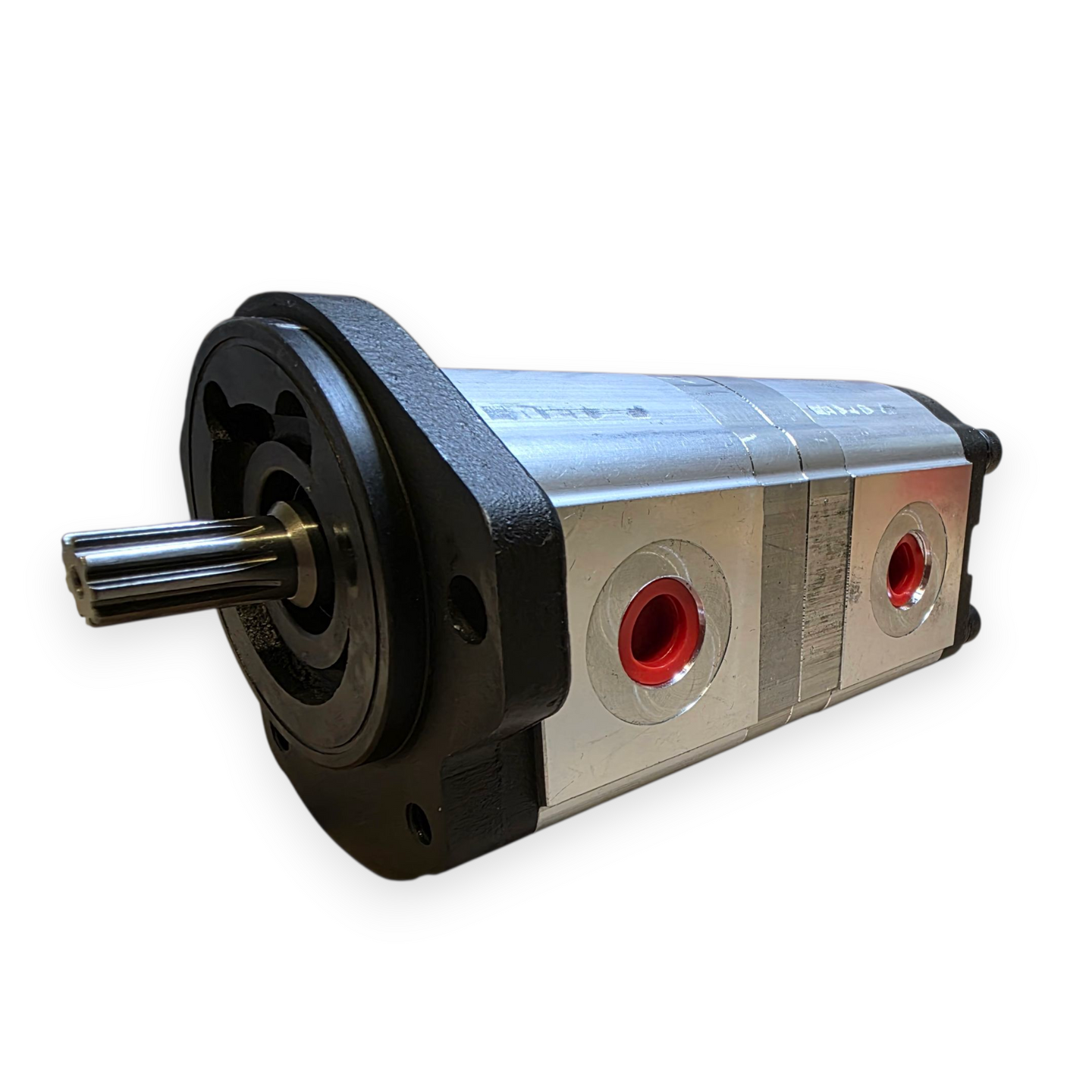

A high-output, double-inlet/double-outlet tandem gear pump sized for 23HP Rato engines.
You may need different port adapters or hoses for your specific machine. 1" ID supply-side hoses recommend (from tank to pump)
Specifications
Displacement: 9.5 + 9.5 cc/rev (19 cc total / 1.16 in³ per rev)
Inlets: 2 × SAE 12
Outlets: 2 × SAE 10
Shaft: SAE 16/32 DP 9-tooth spline
Mounting: SAE “A” 2-bolt flange
Flow: 18 GPM @ 3600 RPM & 2250 PSI (max 4000 RPM)
Rotation: Clockwise
Warranty: 12 months when using 1" ID Supply Lines.
Attention:
This unit requires the use of 1" ID supply hoses to prevent cavitation, we recommend using SAE 12 to 1" ID barbed fittings, easy to cut supply line hose (SAE 100R4) and T clamps to replace the original crimped supply hoses from the tank outlet to pump inlet.
We recommend Discount Hydraulic Hose
For any adapter and custom hydraulic hose needs.
A high-output, double-inlet/double-outlet tandem gear pump sized for 23HP Rato engines.
You may need different port adapters or hoses for your specific machine. 1" ID supply-side hoses recommend (from tank to pump)
Specifications
Displacement: 9.5 + 9.5 cc/rev (19 cc total / 1.16 in³ per rev)
Inlets: 2 × SAE 12
Outlets: 2 × SAE 10
Shaft: SAE 16/32 DP 9-tooth spline
Mounting: SAE “A” 2-bolt flange
Flow: 18 GPM @ 3600 RPM & 2250 PSI (max 4000 RPM)
Rotation: Clockwise
Warranty: 12 months when using 1" ID Supply Lines.
Attention:
This unit requires the use of 1" ID supply hoses to prevent cavitation, we recommend using SAE 12 to 1" ID barbed fittings, easy to cut supply line hose (SAE 100R4) and T clamps to replace the original crimped supply hoses from the tank outlet to pump inlet.
We recommend Discount Hydraulic Hose
For any adapter and custom hydraulic hose needs.
- Regular price
- $349.00
