The full instruction guide is in progress, a basic example installation guide is included but does not currently have a programming guide. Only purchase if you know how to or can learn how to configure basic servo motion and 2.4Ghz EdgeTX transmitter programming (switch/stick assignment and servo travel tuning).

We are manufacturing these kits as-needed, so it may take up to 2 weeks to ship your complete set.

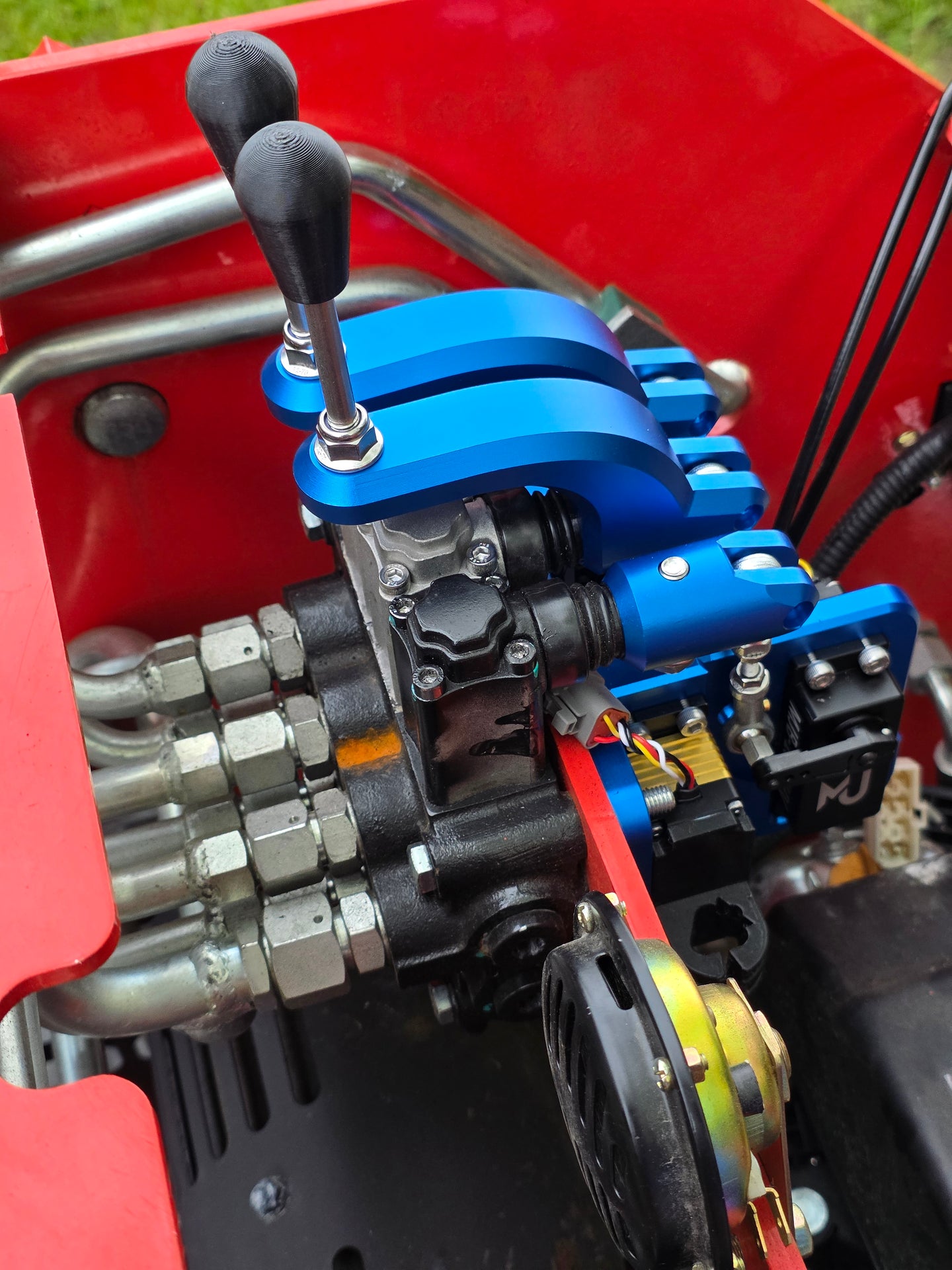

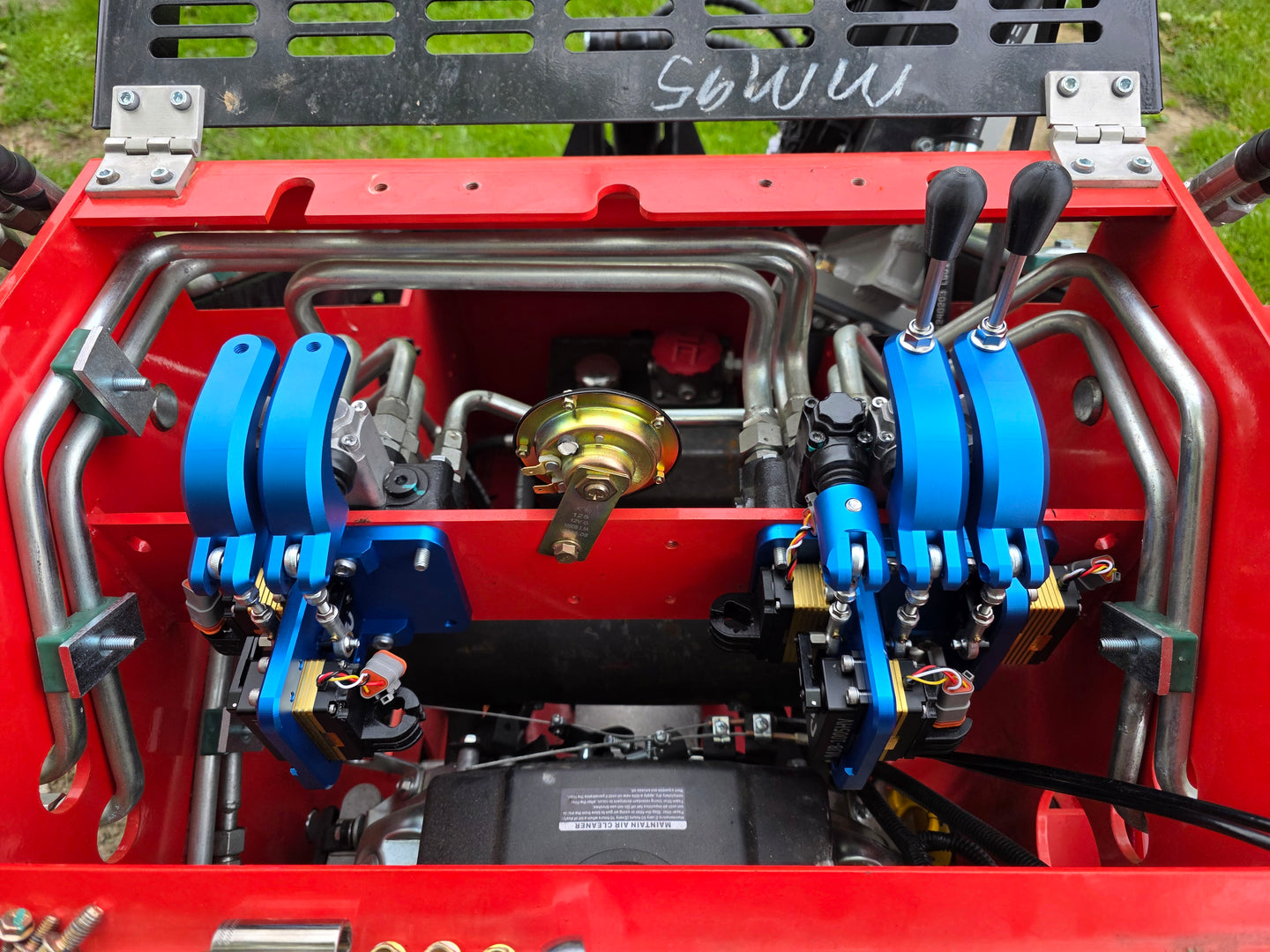

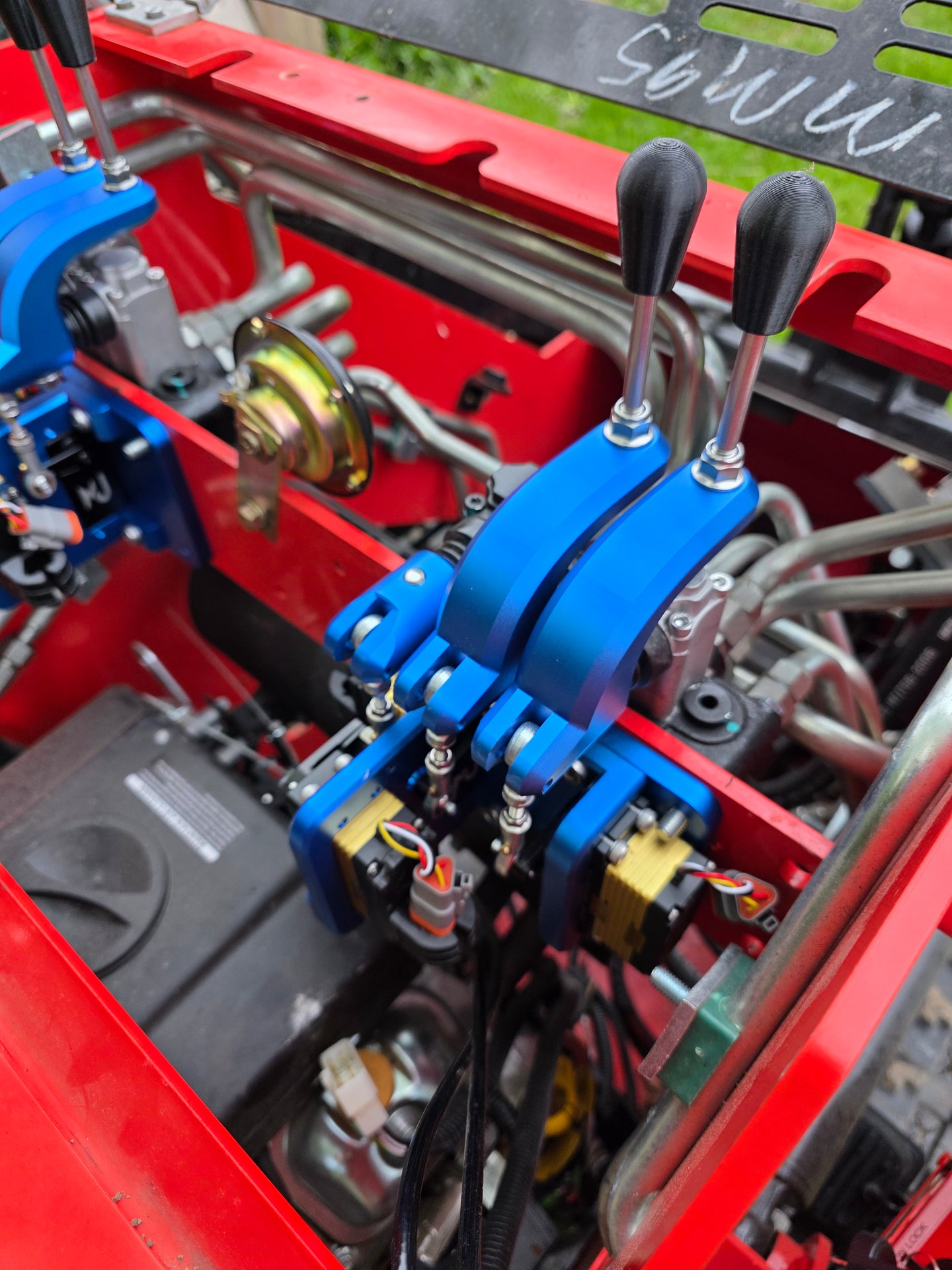

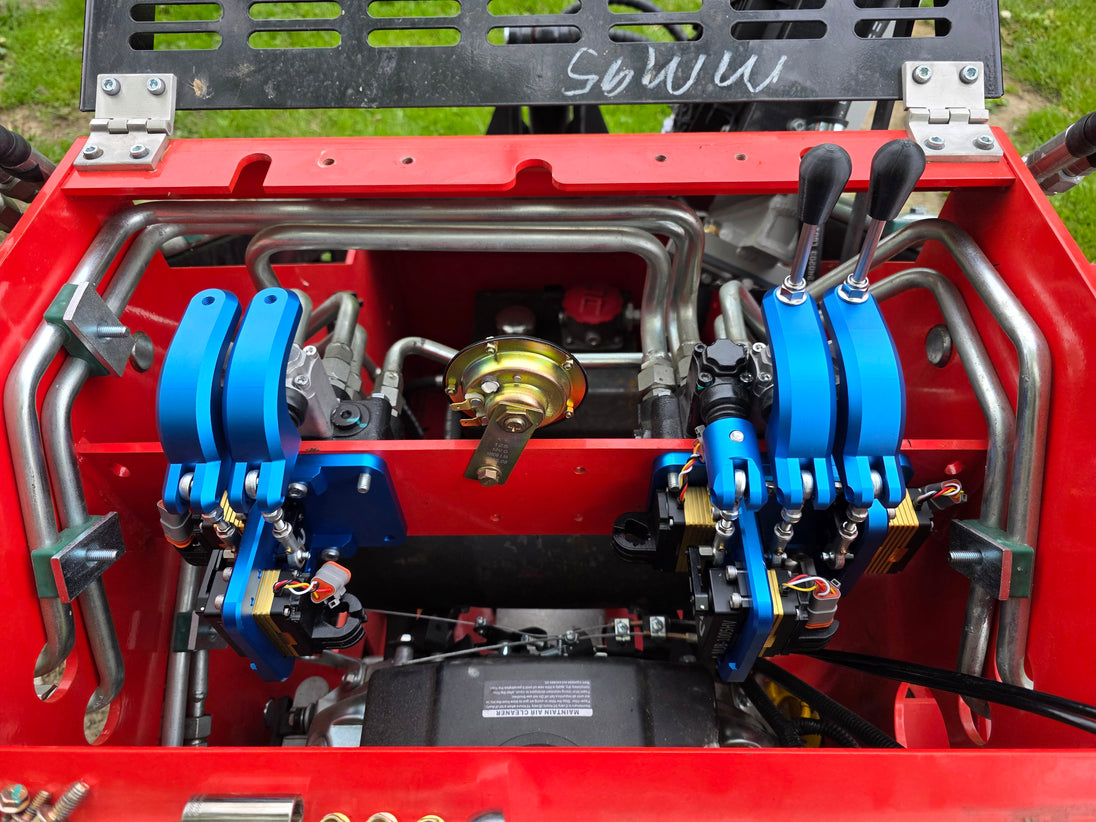

This kit includes all of the parts and electronics needed to convert a five or six spool mini skid steer to full proportional RC control. Most Chinese mini skids use either a 2 and 3 spool monoblock configuration or a 3 and 3 spool configuration. This will not work on machines with pilot controls, only H pattern with M45 type valves.

This conversion is not dual-use manual and RC, the included hydraulic valve handles and horns are for temporary use if your electronics fail.

Support/troubleshooting facebook group link

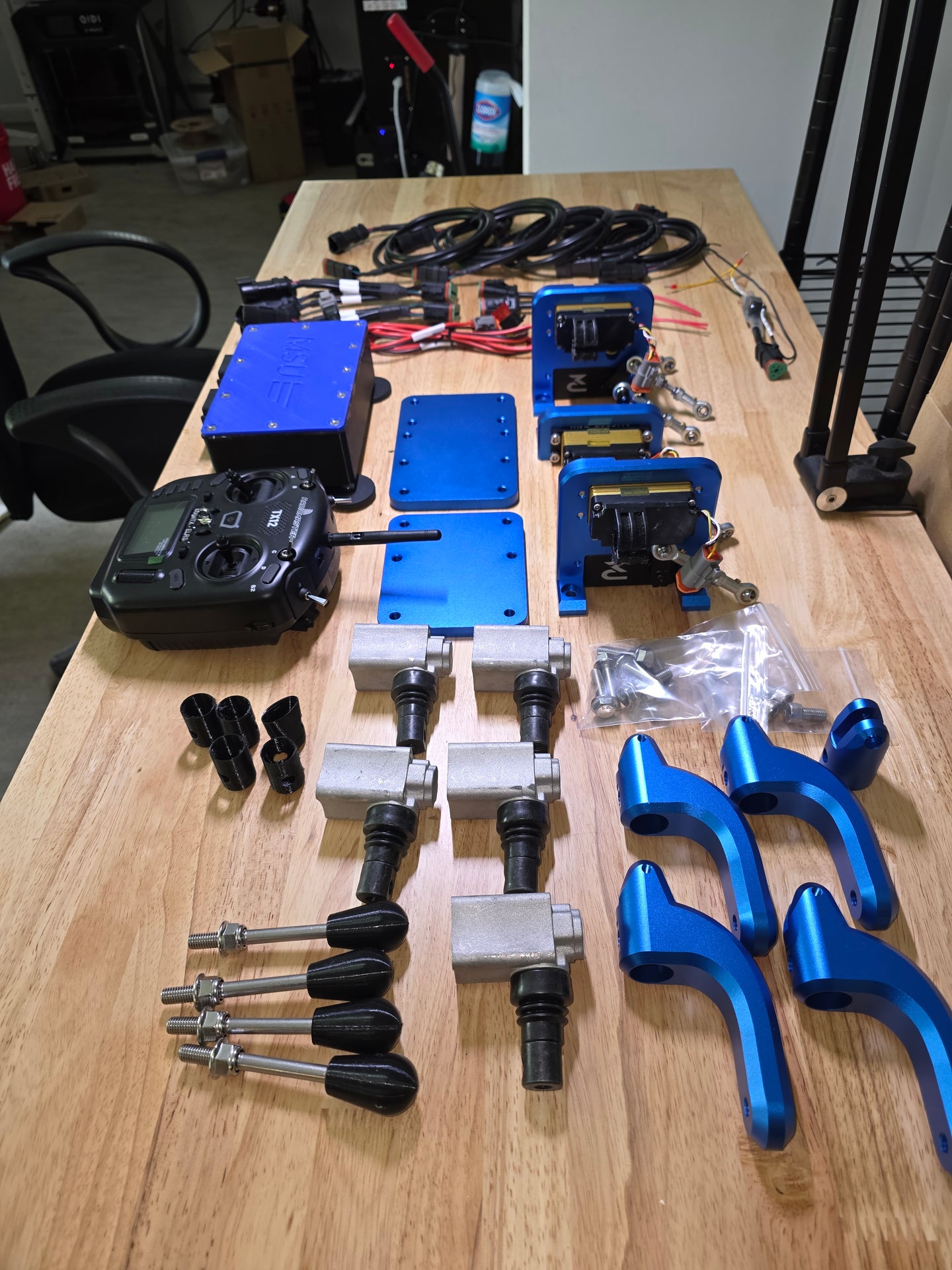

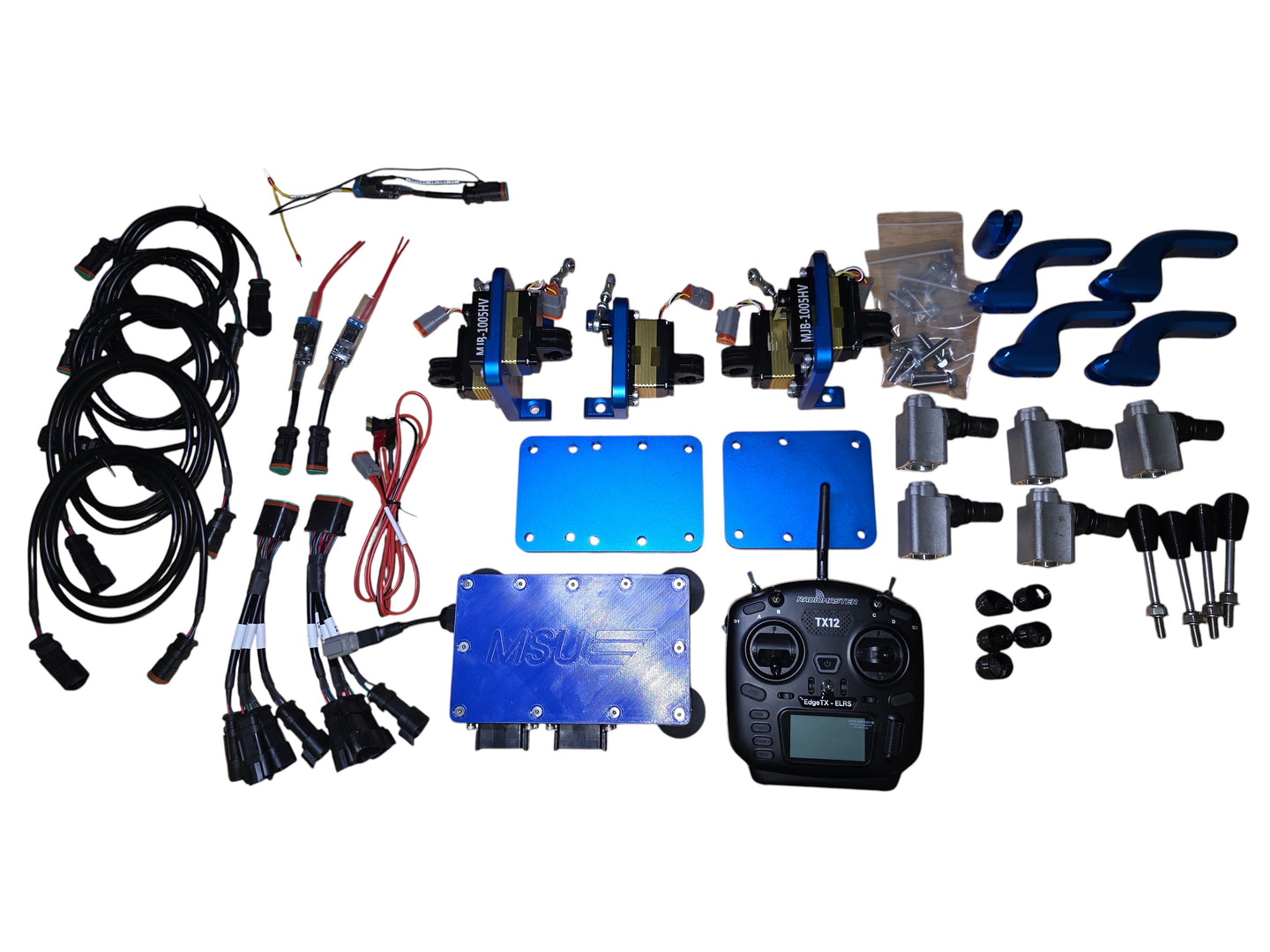

Kit includes:
Mounting plates and servo brackets based on your selection
Full metal 150kg brushless servos for each function
Linkages, valve caps and handle conversions for each valve to attach them
Custom made control/power distribution box manufactured by MSU utilizing a 2.4ghz radiomaster 8 channel ELRS receiver, compatible with EdgeTX transmitters
Custom heavy duty cables for each servo
Custom PWM relay kill switch cable, two PWM relays for wiring optional additional functions (lights, horn and so on.)

Optional choices:
2 and 3 spool or 3 and 3 spool set
2 or 4 emergency use only handles for manual control
No transmitter or Radiomaster TX12 MK II

Manufactured in the USA with domestic and foreign components
